    Hi!
    My name is Mikael, and I am from Norway.
    Thought I could share my first shafty build with you
    I hope your bear with me on this one, hehe...

    Preliminary specs are as follows:
    - Sparetime Hobbies V1S chassis kit
    - Parma Xciter body
    - Dlux Hamberger SAF trans
    - Puller 400 13t XX
    - Castle Creations Micro X
    - Sanwa RX-472
    - Holmes Hobbies SHV500V3 direct powered servo
    - Axial Capra axles

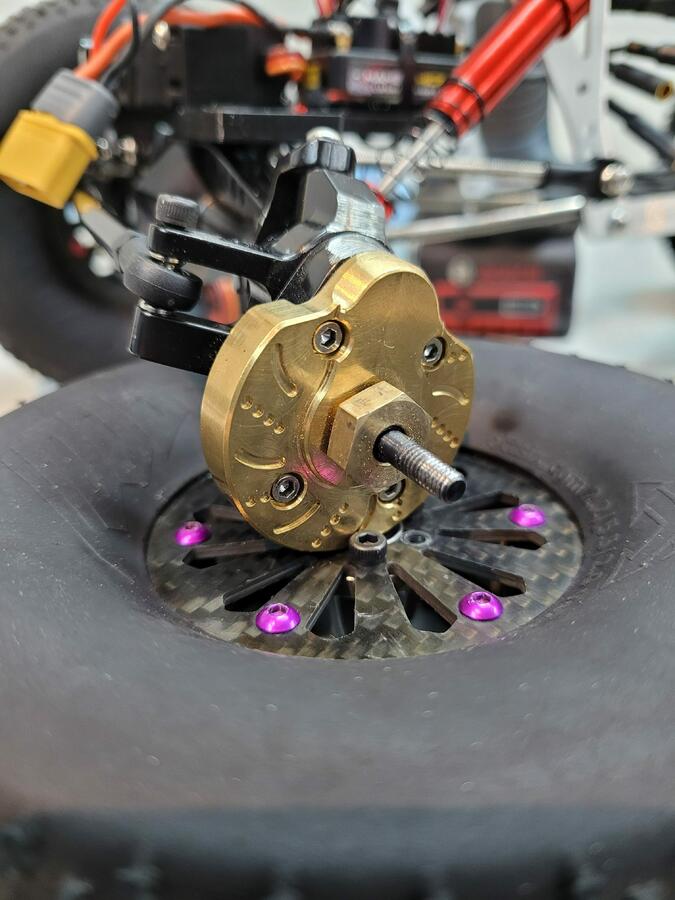

    - Team Garage Hack Wild Overdrive front portal gears
    - 2.2", 1" wide Crawler Keller carbon wheels
    - Narrowed Voodoo Pins, silver front, blue rear

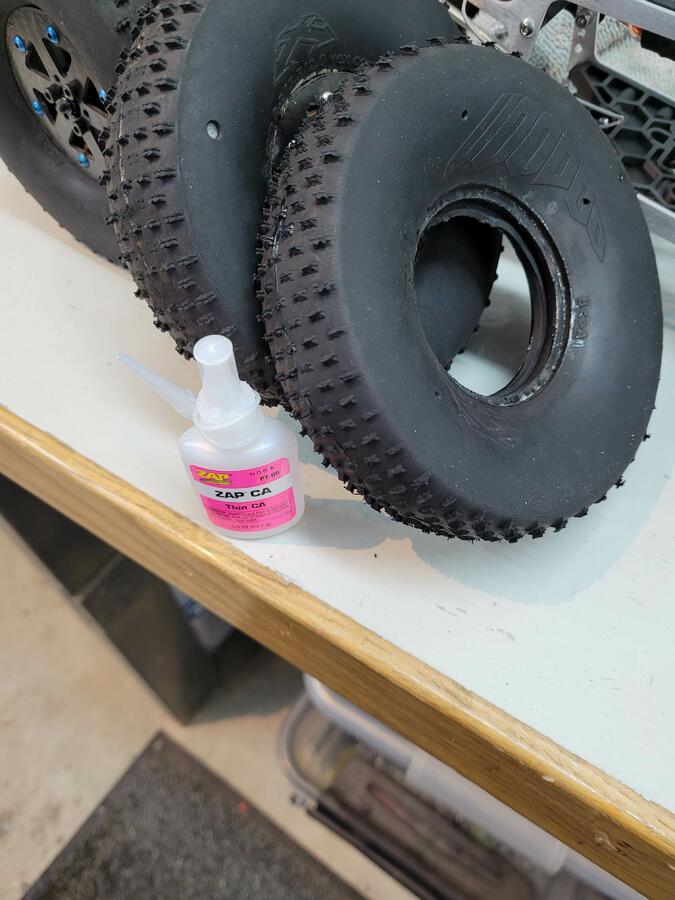

    - Narrowed 5.5" CI dual stage foams, comp cut soft front, standard medium rear with tuning ring
    - Servo, battery and electronics mount for axle designed and printed by me
    - short Dravtech shocks and Axial Bomber sway bar rear (shocks, links and sway bar subject to massive tuning at the moment )

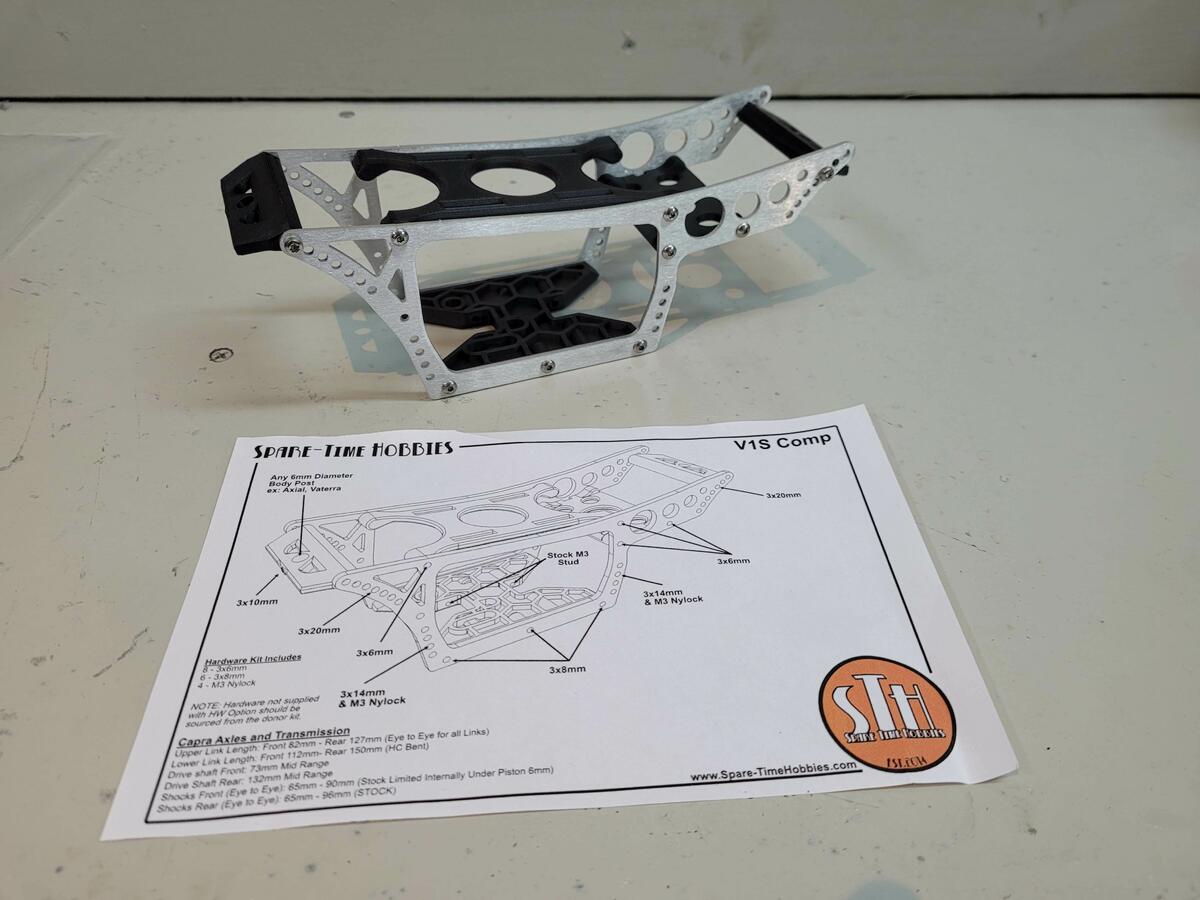

    The chassis as I received it.

    Click image for larger version

Name:	20210114_160708.jpg
Views:	60
Size:	89.6 KB
ID:	701

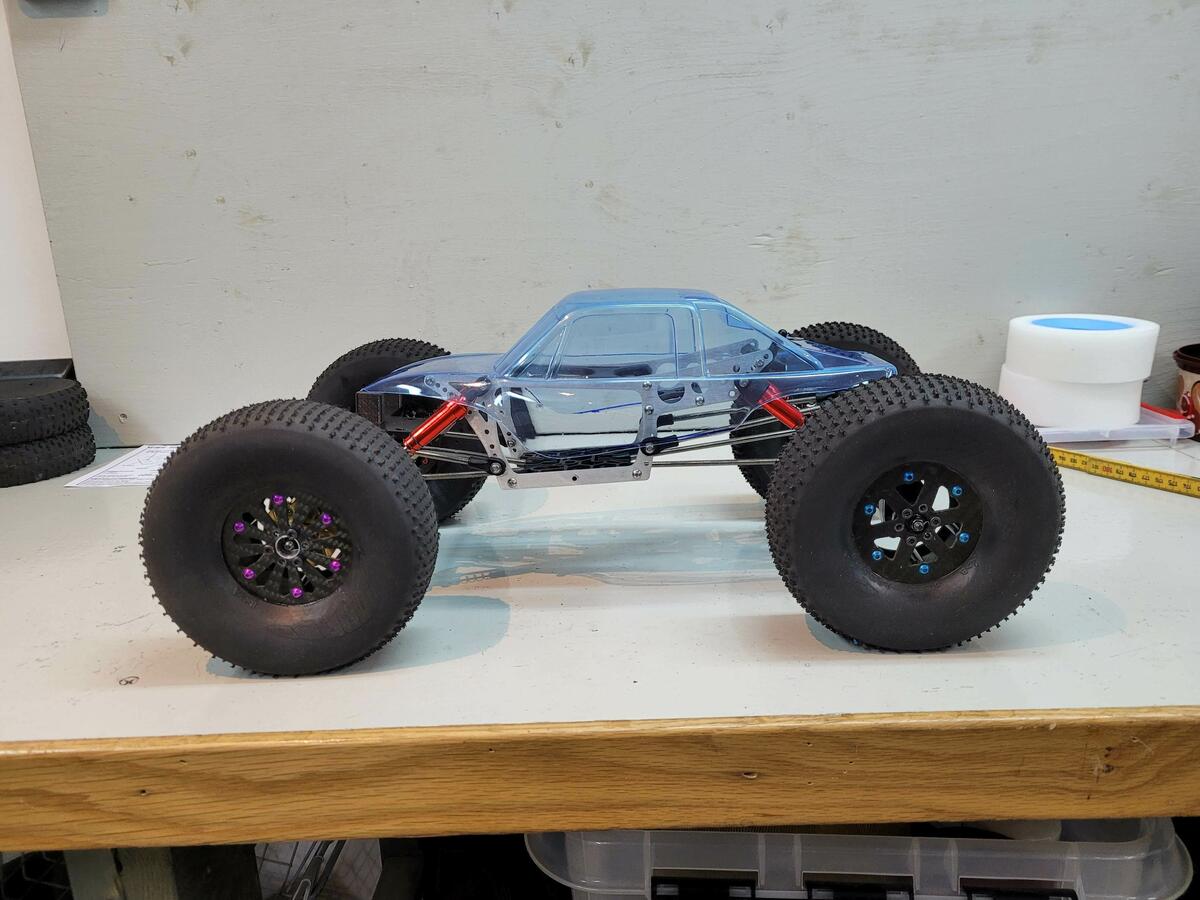

    First mockup with links made from M4 threaded rod. Will be made of titanium later on.

    Click image for larger version

Name:	20210114_221350.jpg
Views:	43
Size:	107.4 KB
ID:	702

    Click image for larger version

Name:	20210115_220801.jpg
Views:	44
Size:	70.5 KB
ID:	704

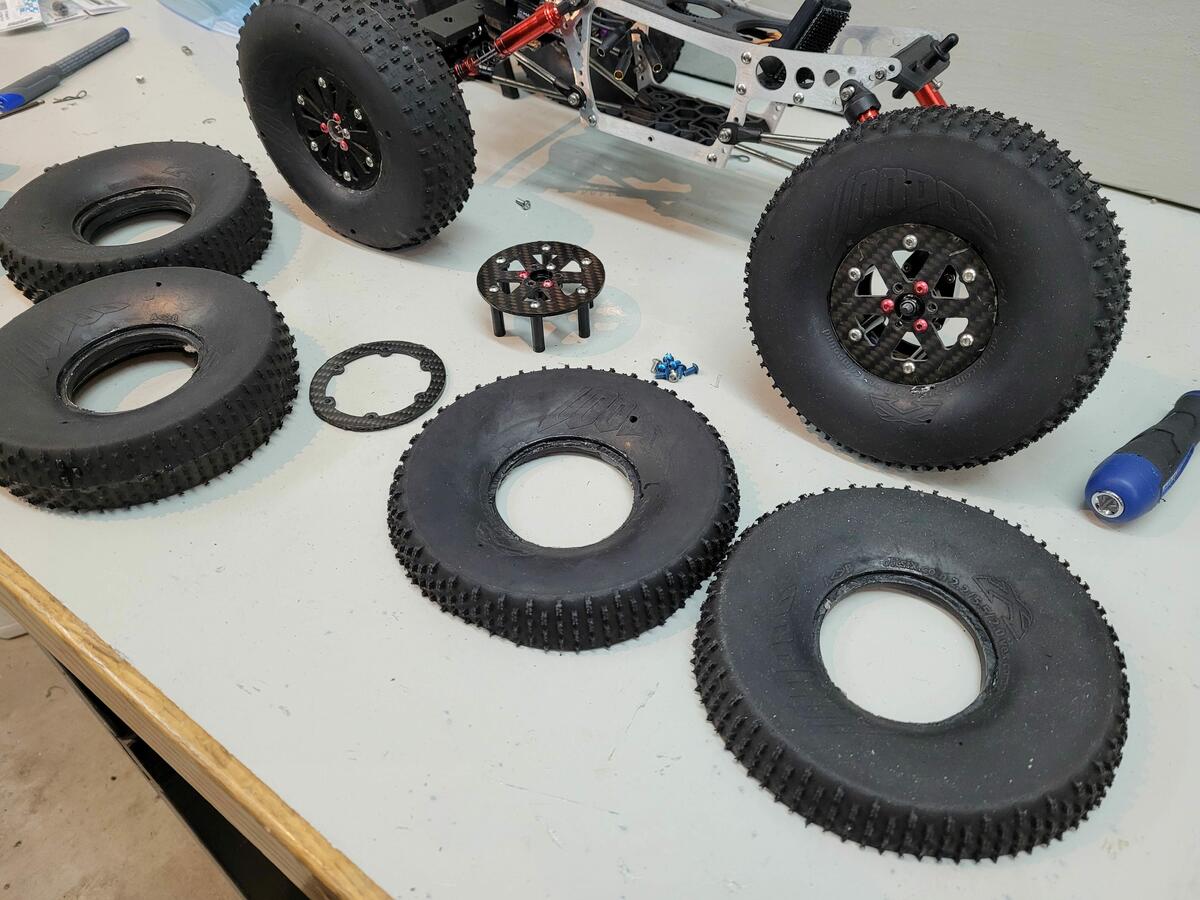

    Narrowing of the Voodoos

    Click image for larger version

Name:	20210117_122039.jpg
Views:	43
Size:	133.1 KB
ID:	703
    Click image for larger version

Name:	20210116_140746.jpg
Views:	43
Size:	72.7 KB
ID:	705

  • #2
    While waiting for my Hamberger, I tried with a Capra trans and 1400kv revolver. The capra trans was geared waay to high, and added to much weight.
    Driveshafts are what I had laying around until SDI shafts are back in stock.

    Click image for larger version

Name:	20210122_103016.jpg
Views:	46
Size:	117.2 KB
ID:	707

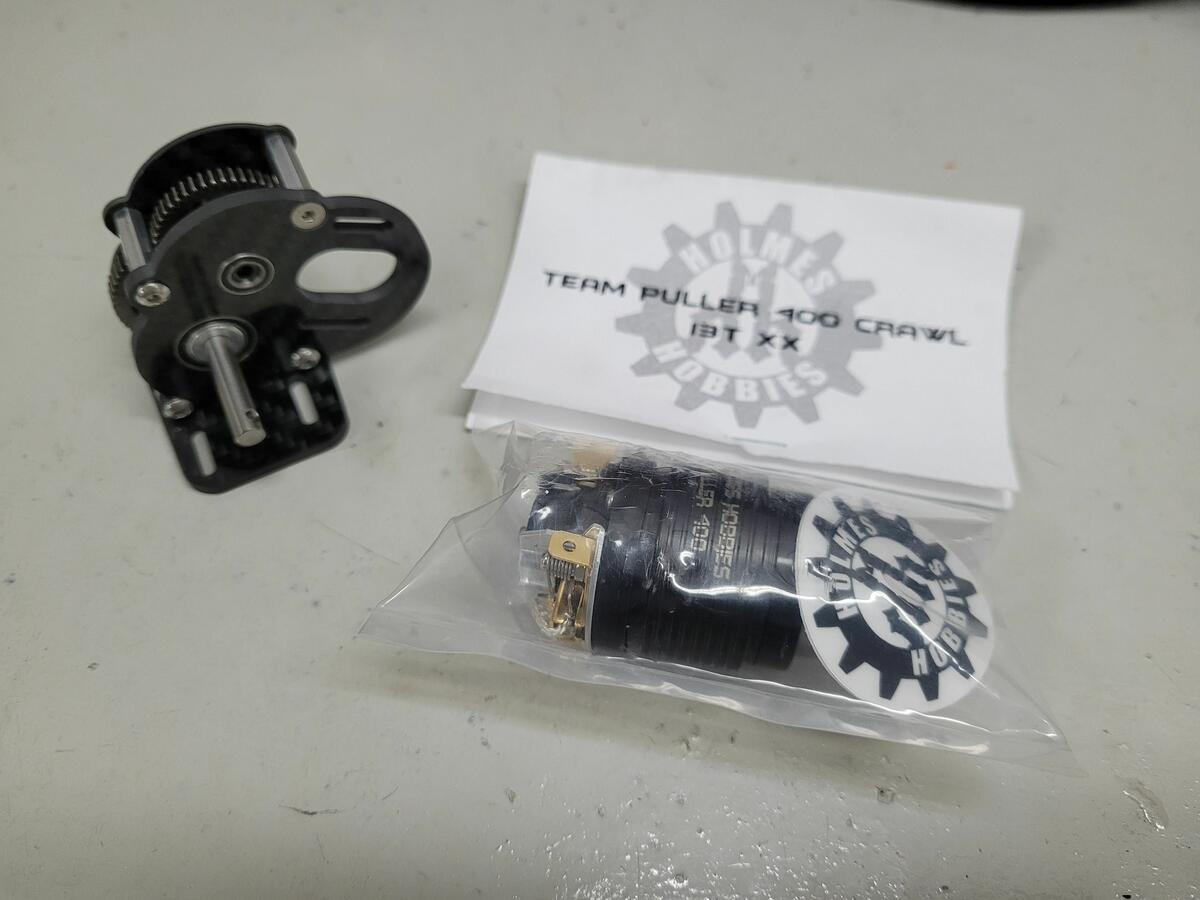

    Received some goodies from Dlux

    Click image for larger version

Name:	20210203_212332.jpg
Views:	45
Size:	69.5 KB
ID:	708

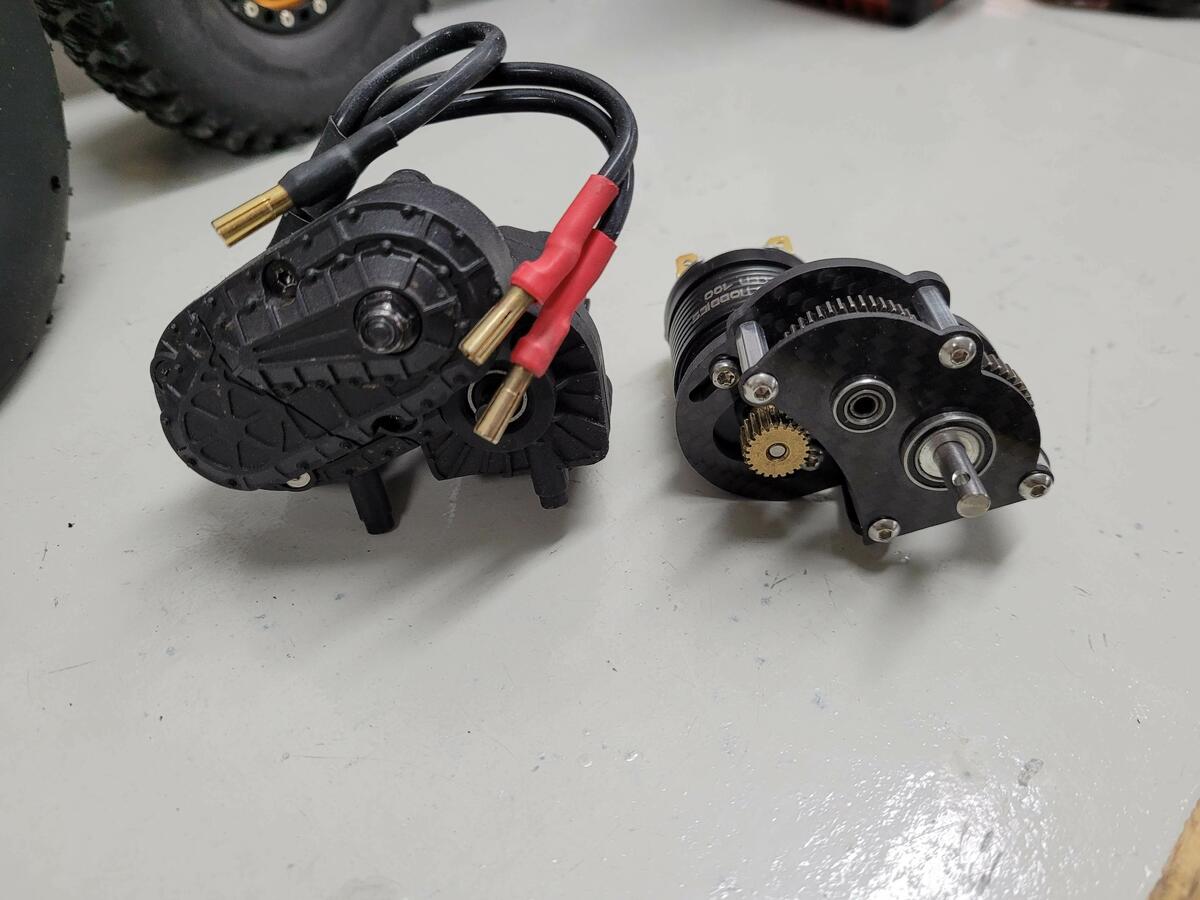

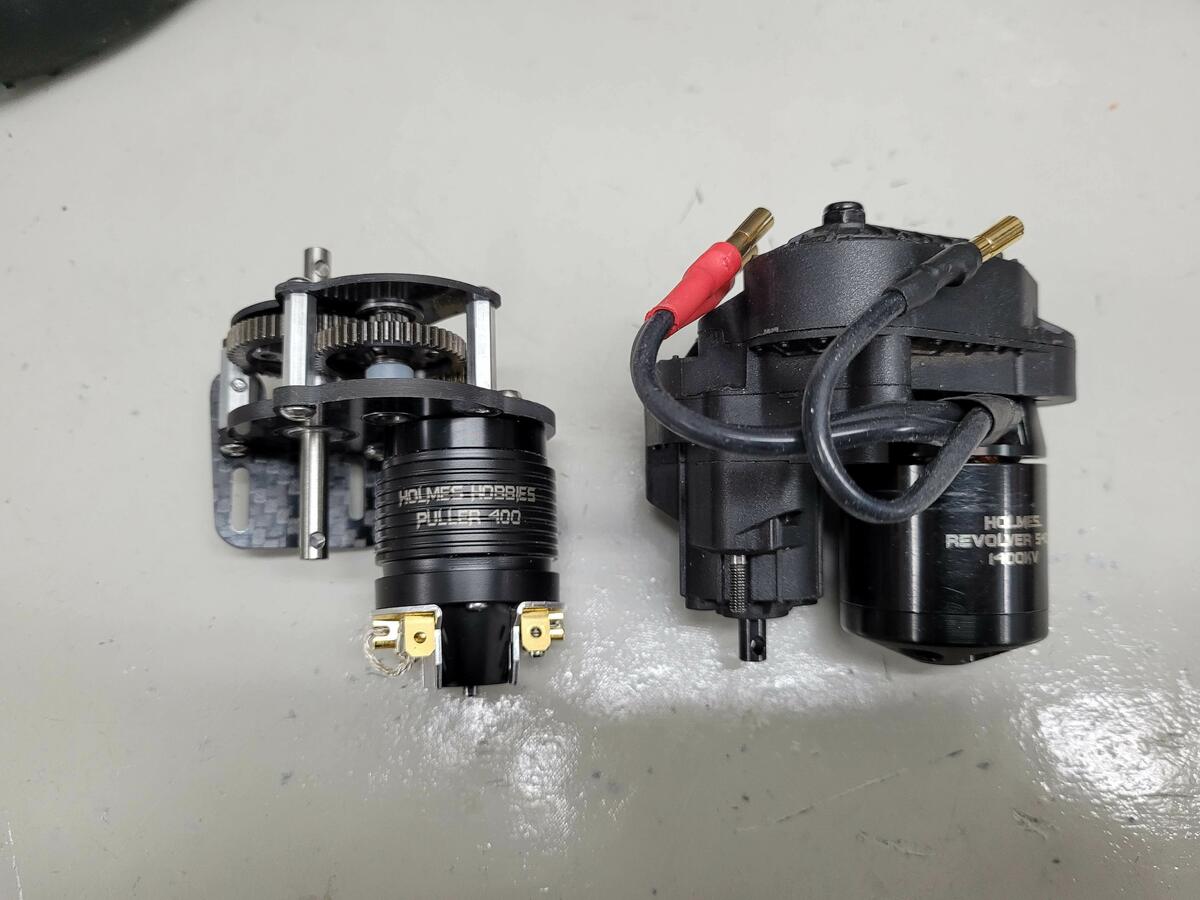

    Comparison to Capra trans with 540 revolver, very light! 50 grams for the trans, and 130 grams for the Puller 400.

    Click image for larger version

Name:	20210203_214334.jpg
Views:	43
Size:	87.0 KB
ID:	709

    Click image for larger version

Name:	20210203_214346.jpg
Views:	44
Size:	88.7 KB
ID:	710

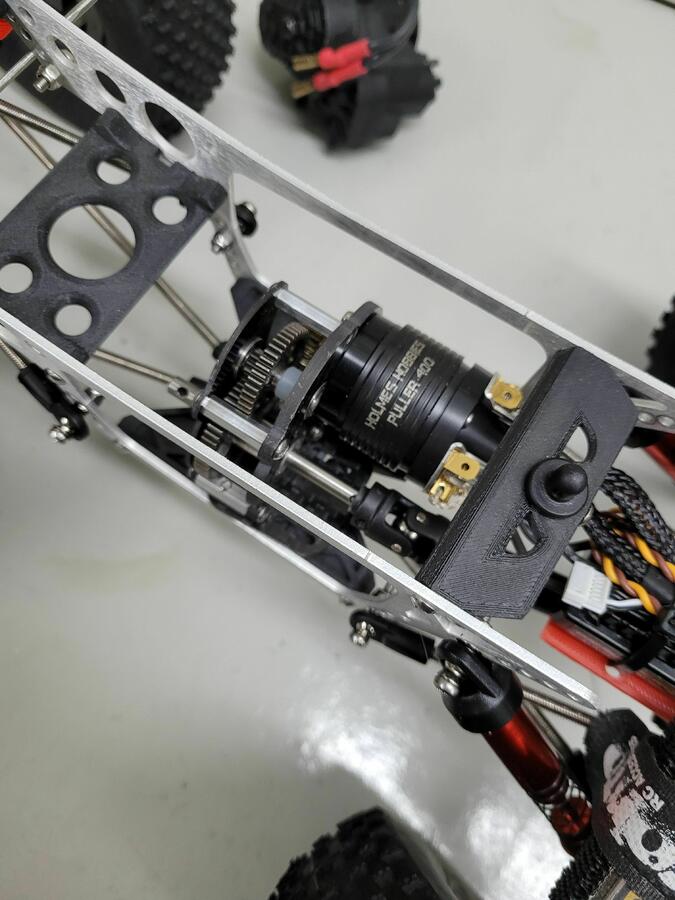

    Mock up in chassis
    Click image for larger version

Name:	20210203_213648.jpg
Views:	43
Size:	72.9 KB
ID:	711

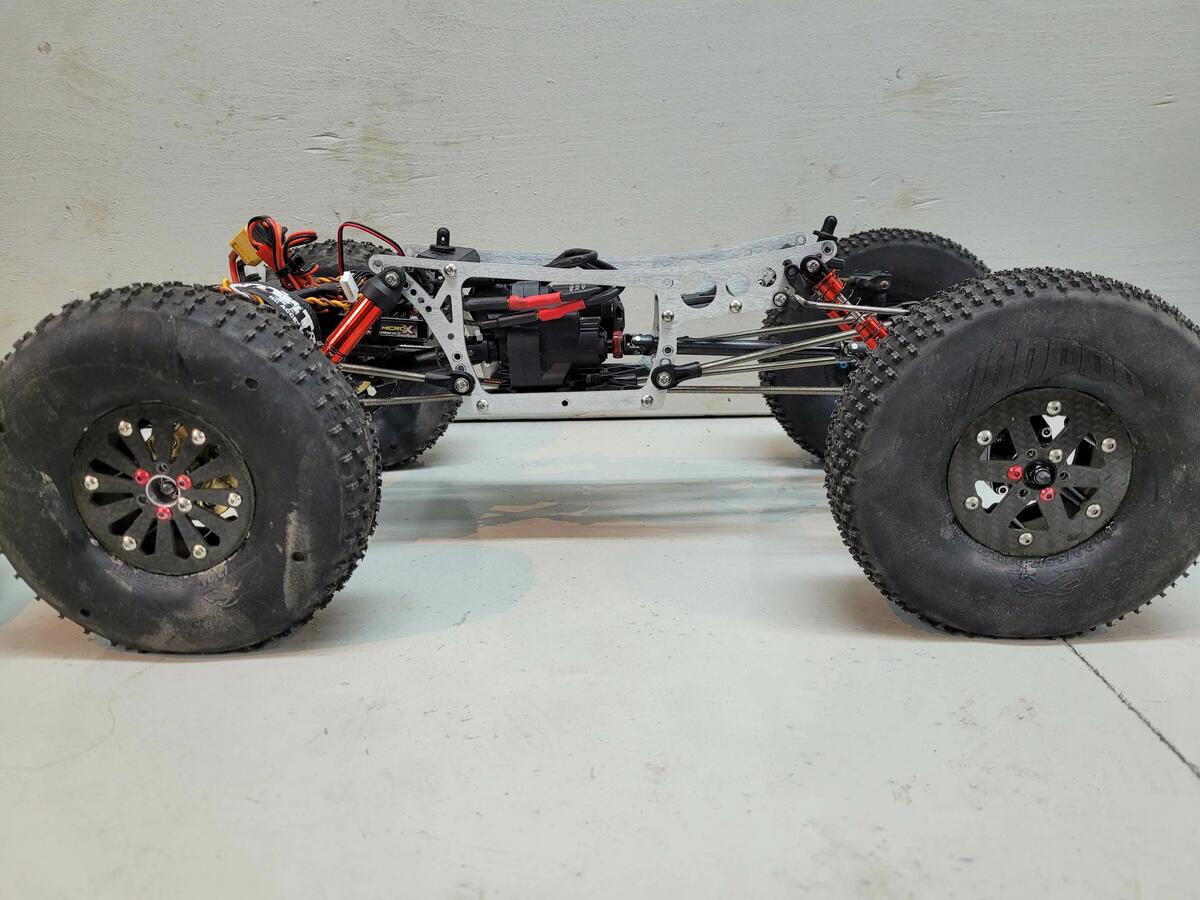

    I struggled (and still do to some degree) with massive torque twist on my intial setup. This is with big 850mah battery in front, capra trans and no sway bar. soft spring front, medium rear.


    https://photos.app.goo.gl/KARqN9tpSnFeF2Dx8

    Comment


    • #3

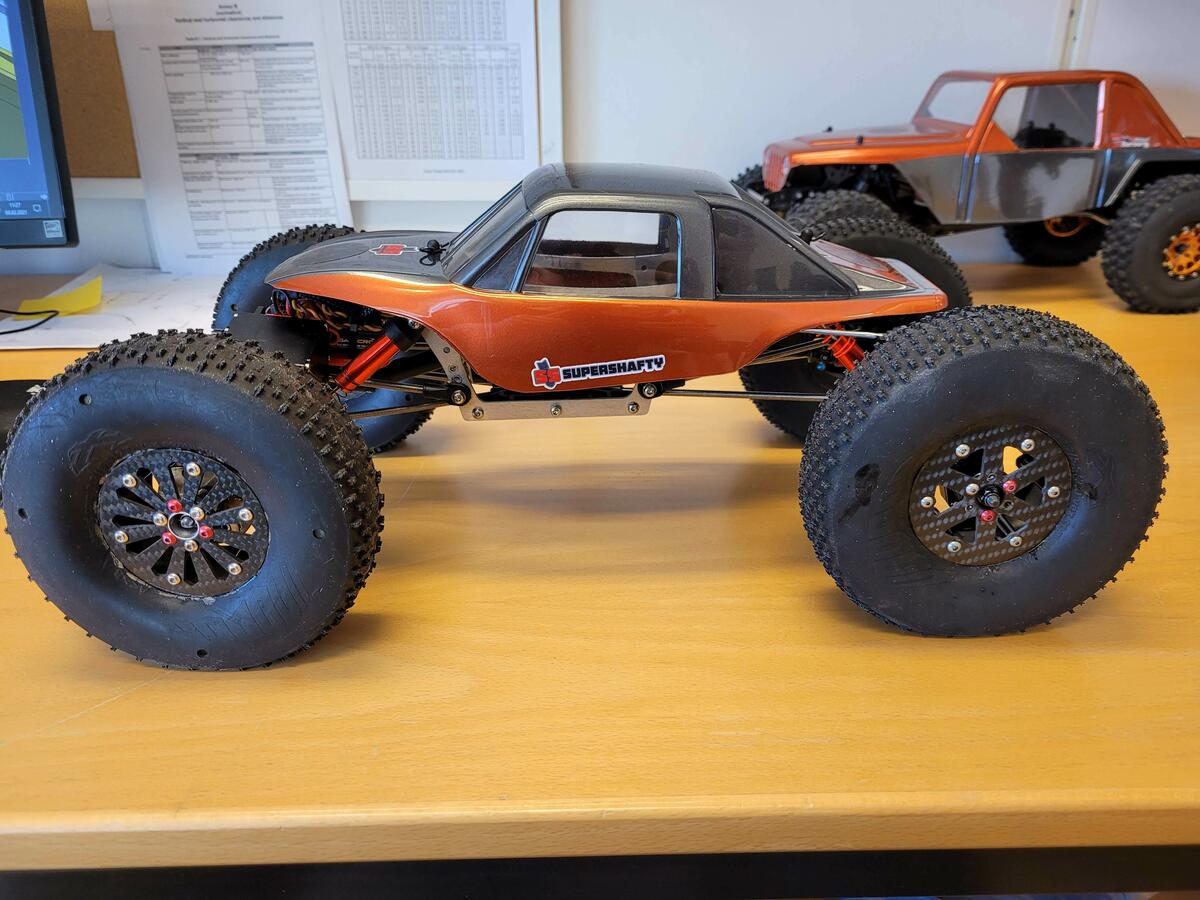

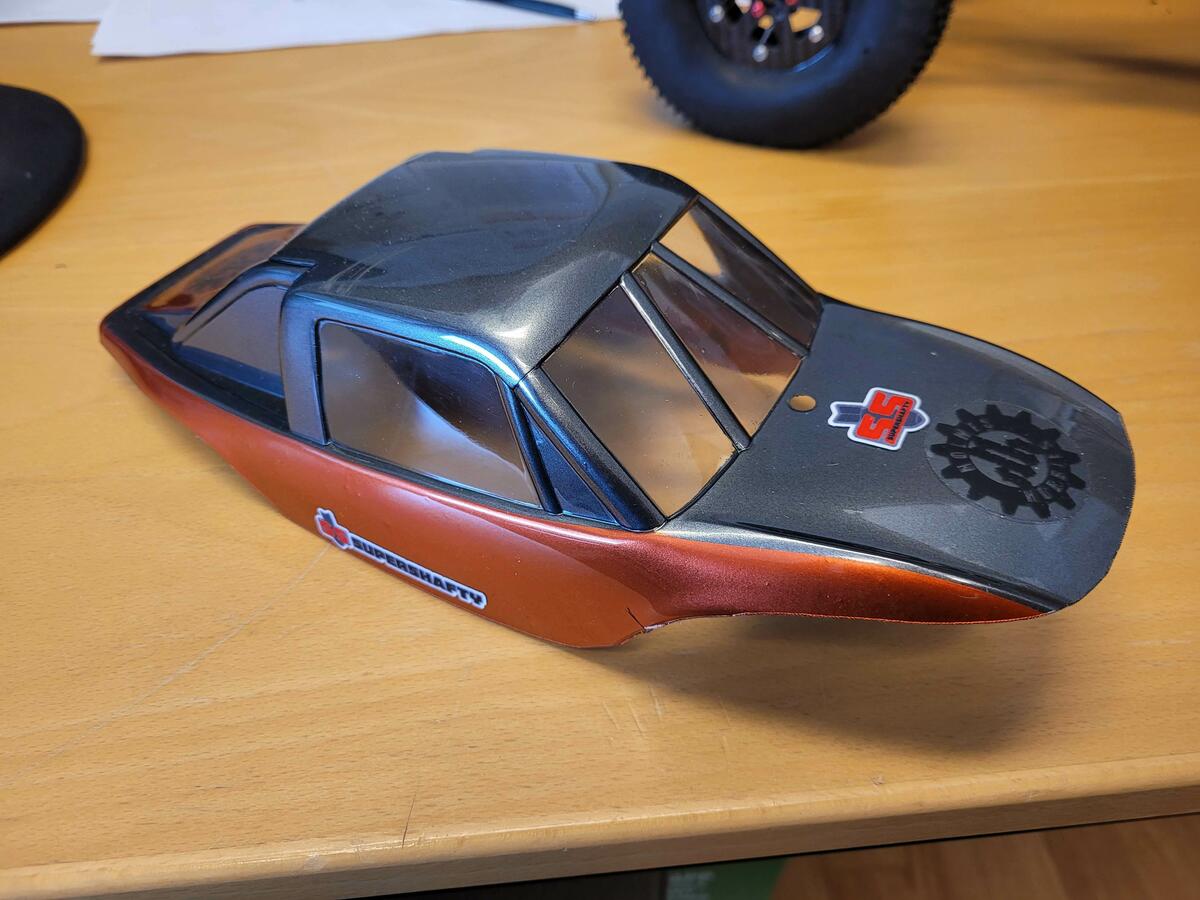

      Painted the Parma body

      Click image for larger version

Name:	20210209_112829.jpg
Views:	43
Size:	109.5 KB
ID:	715

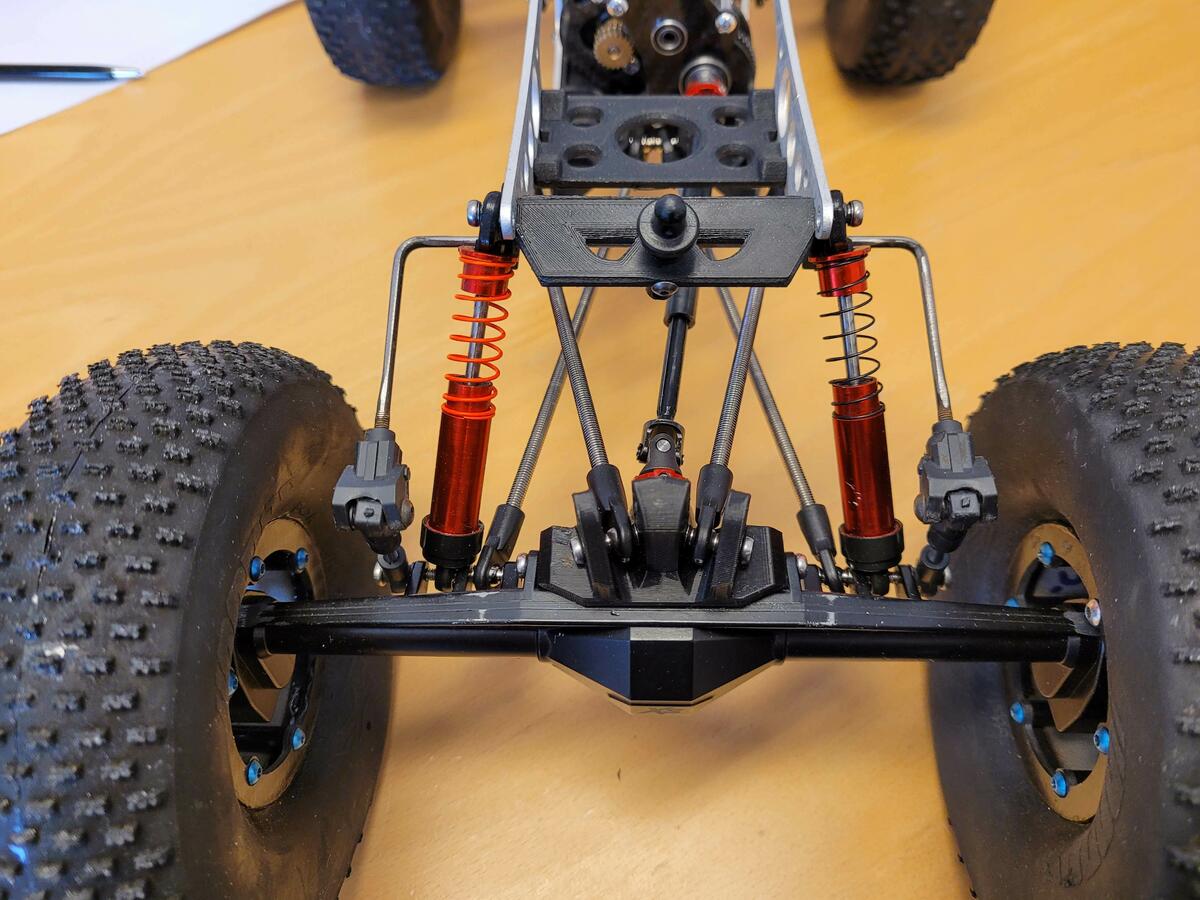

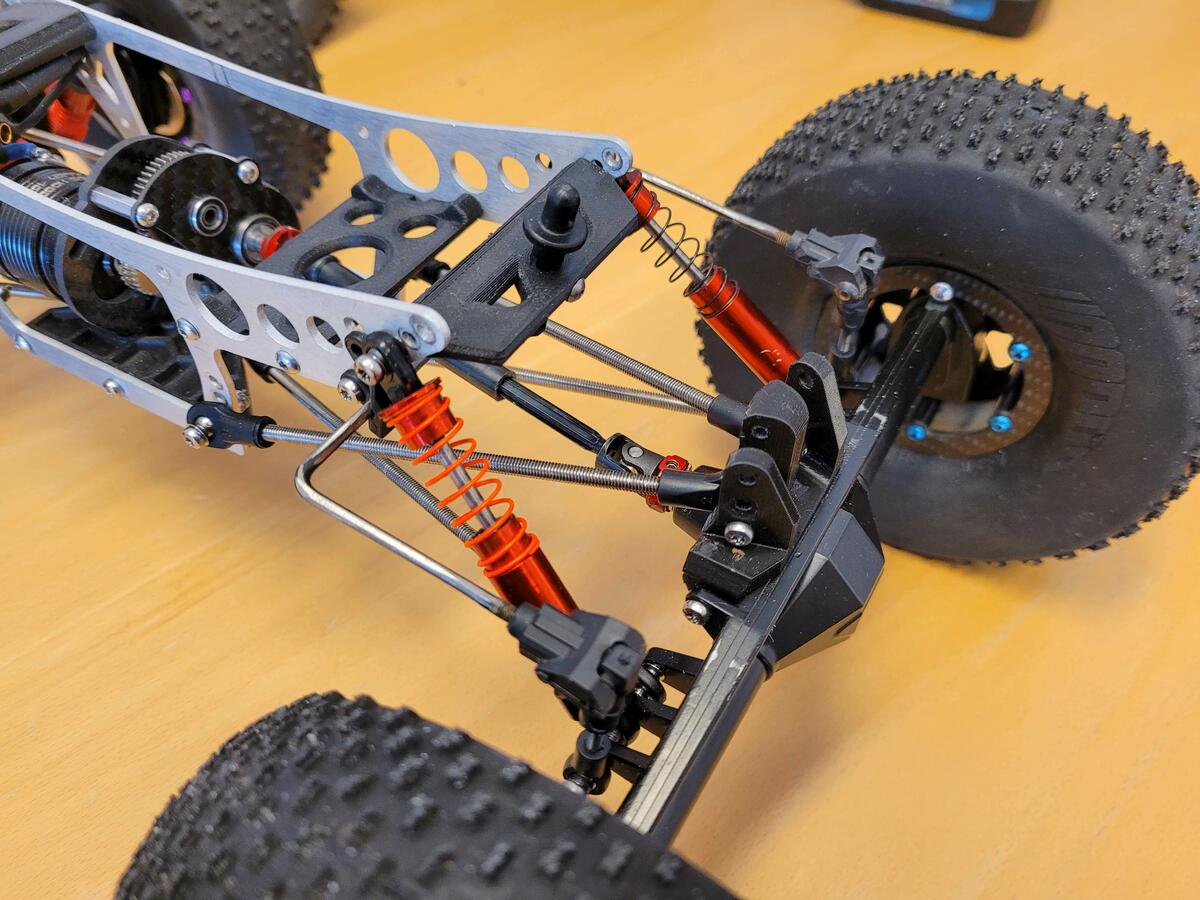

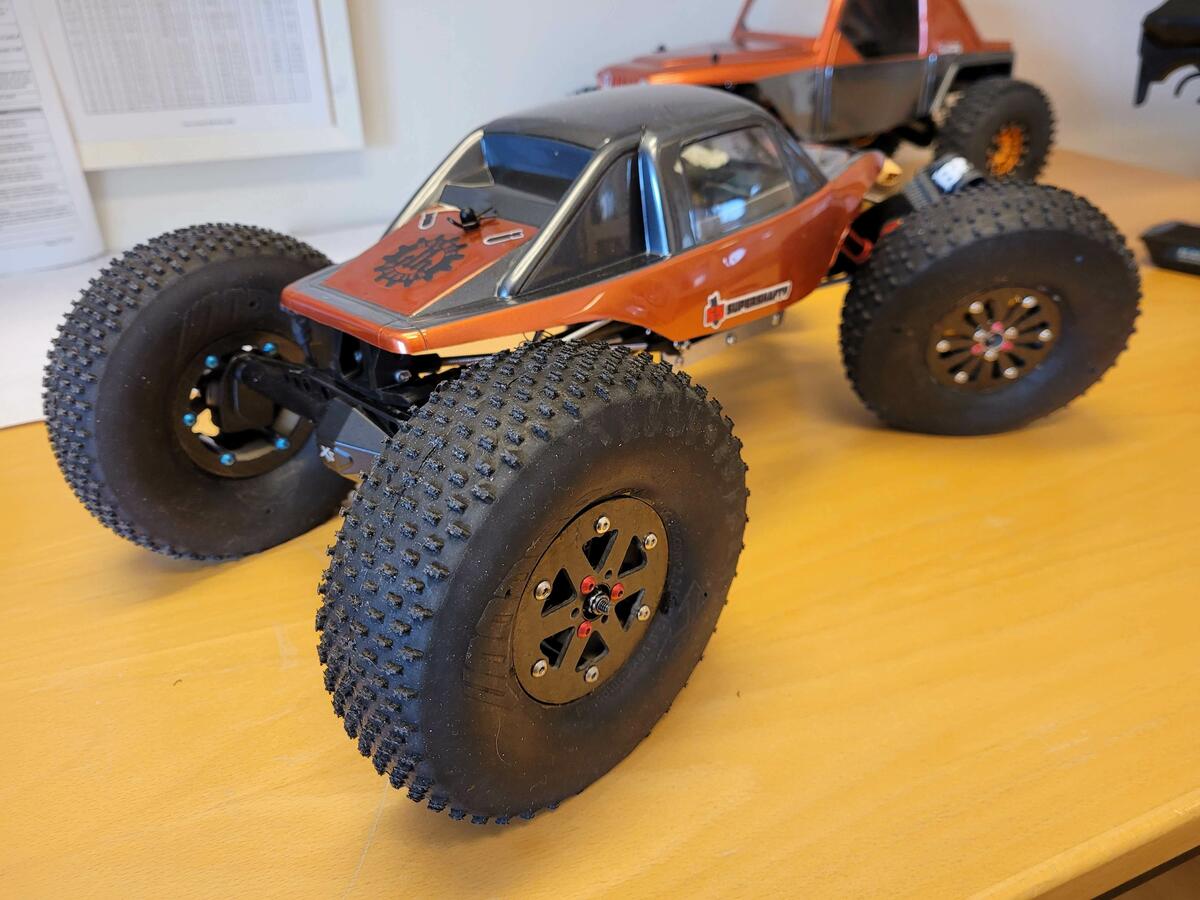

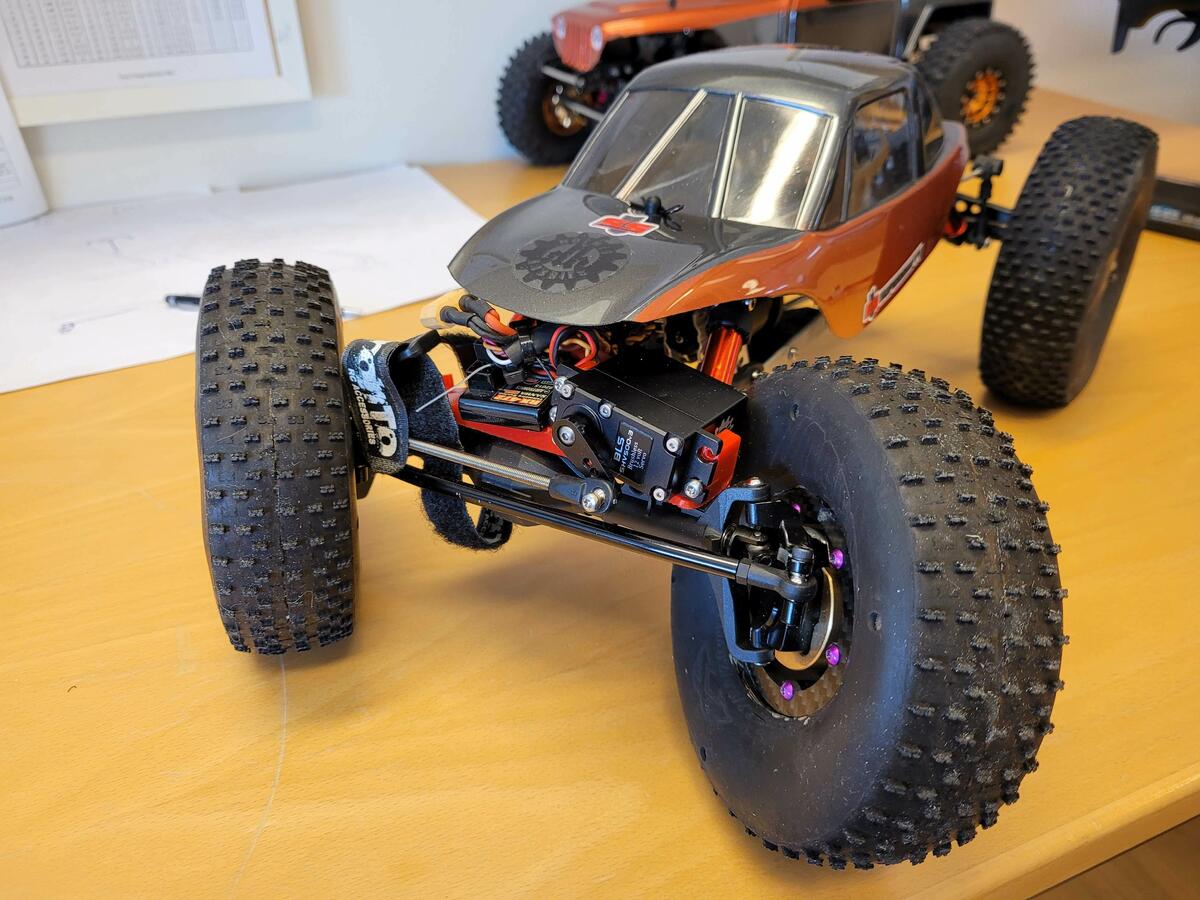

      Current state of the car, sits at about 70mm ground clearance under skid now
      Click image for larger version

Name:	20210209_112732.jpg
Views:	44
Size:	133.2 KB
ID:	713
      Ordered some smaller 450mah batteries, and need to solder on XT30 connector and come up with some clever hold-down of the battery Servo mount is still a test print
      Click image for larger version

Name:	20210209_112749.jpg
Views:	44
Size:	142.1 KB
ID:	716Click image for larger version

Name:	20210209_112807.jpg
Views:	44
Size:	113.8 KB
ID:	714

      Comment


      • #4
        Click image for larger version

Name:	20210209_112845.jpg
Views:	45
Size:	141.4 KB
ID:	718Click image for larger version

Name:	20210209_112857.jpg
Views:	43
Size:	135.1 KB
ID:	719Click image for larger version

Name:	20210209_112903.jpg
Views:	44
Size:	140.5 KB
ID:	720

        Comment


        • #5
          Good looking rig!
          Congratulations!

          Curious about that rear swaybar and how you will like it.
          Was that front servo and electronics tray made on a home printer?

          Comment


          • #6
            Originally posted by Xkill View Post
            Good looking rig!
            Congratulations!

            Curious about that rear swaybar and how you will like it.
            Was that front servo and electronics tray made on a home printer?
            Thank you!
            I have a lot to learn both on setting up a comp crawler, and driving it on course, but can't wait for the season to start

            I feel like it is a bit to stiff as this, maybe I will try the Dlux universal swaybar later.
            Yes, its printed as a test with low infill and high speed on my Ender 3 Pro

            Comment


            • #7
              Looking good, soon season start

              Comment
